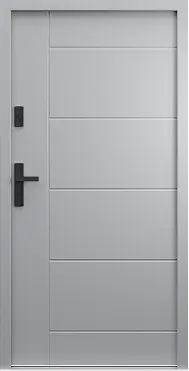

Model L.1

Walnut
embossing on both sides

| PREMIUM ENERGY 1340.00 | 1608
| OPTIMUM ENERGY 1313.33 | 1576
| OPTIMUM 1150.83 | 1381
| STANDARD 665.83 | 799

Model L.2

Walnut
embossing on both sides

1340.00 | 1608
1313.33 | 1576
1150.83 | 1381
665.83 | 799

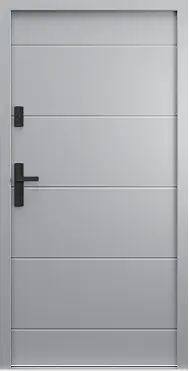

Model L.3

Walnut
embossing on both sides

1340.00 | 1608
1313.33 | 1576
1150.83 | 1381
665.83 | 799

Model L.4

Walnut
embossing on both sides

1535.00 | 1842
1508.33 | 1810
1286.67 | 1544
799.17 | 959

*Woodec Turner Oak is not available in the STANDARD package.

Colours of accessories and details
All models available in

SPECIFICATIONS OF AVAILABLE PACKAGES
Lower Ud = more insulating, warmer door

STANDARD

Ud = 1.1

thermal
insulation
[W/m2K]

OPTIMUM

Ud = 0.73

thermal
insulation
[W/m2K]

OPTMUM ENERGY

Ud = 0.61

thermal
insulation
[W/m2K]

PREMIUM ENERGY

Ud = 0.57

thermal
insulation
[W/m2K]

LEARN ABOUT THE DESIGNS THAT AFFECT THERMAL INSULATION PERFORMANCE


DURABILITY FOR DECADES THANKS TO MODERN COMPOSITE TECHNOLOGY
The SolidTherm composite is a specially designed blend of ABS and fiberglass. Unlike wooden structures, it does not absorb moisture and does not deform with temperature fluctuations, and is durable. It guarantees thermal insulation of the structure and tightness of the door for many years. All leaves are filed with PUR (polyurethane) foam, which, in addition to high thermal insulation, solidly bonds the entire structure.
door leaf construction
wooden rails and stiles
+ PUR foam core

thickness
54mm 		door leaf construction
composite rails and stiles
+ PUR foam core

thickness
66mm 		door leaf construction
composite rails and stiles
+ PUR foam core

thickness
78mm 		door leaf construction
composite rails and stiles
+ PUR foam core

thickness
66mm
steel
frame 		aluminium
frame 		aluminium
frame 		aluminium
frame
steel
threshold 		aluminium-composite
threshold strengthening
the thermal insulation 		aluminium-composite
threshold strengthening
the thermal insulation 		aluminium-composite
threshold strengthening
the thermal insulation
standard
handle 		premium handle
with increased safety
parameters RC2 		premium handle
with increased safety
parameters RC2 		premium handle
with increased safety
parameters RC2
X possibility to add
sidelights 		possibility to add
sidelights 		X

BASIC PRICE FOR THE MODEL INCLUDES:

THE DOOR

  • door leaf size. 90/100
  • frame
  • threshold
  • multipoint lock with hooks
  • adjustable strike plate
  • dog bolts (also known as security studs)
  • adjustable 3D hinges with caps

ACCESSORIES IN SILVER COLOUR (INOX)

  • handle with upper escutcheon
  • set of class B cylinders

Handle + Handle

Included in the price

Handle + Bar (door pull)

Available at extra charge

Handle + Knob

Available at extra charge

AVAILABLE GLASS

Available glass (depending on the style chosen):
– glass 33.1 (safety class P2)
– glass 44.4 (safety class P2) – one of RC2 class components.

Te glass we use is characterized by increased impact strength, and has a protective function (after an impact, the glass breaks, but its pieces are held in place by an undamaged layer of PVB film). Glazing is composite: doors – double-chamber (three-pane) or triple-chamber (four-pane) sets, depending on the thickness of the door, sidelights – double-chamber (triple-glazed) sets. The glazing packages employ a thermally insulated inner frame in black colour.

* Glass options unavailable in C.4.

Black*

Two-way mirror

Graphite

Matt (frosted)

Graphite Reflex*

Transparent

Porta THERMO
wys. standard 		Rozmiar Ss Hs Ds S0 H0 Os Ow Sz Hz Ts/w
STANDARD 90 968 2040 54 1050 2090 920 2025 1030 2080 +10 / +5
100 1068 1150 1020 1130
OPTIMUM 90 984 2037 66 1074 2095 934 2042 1054 2085 +10 / +5
100 1084 1174 1034 1154
OPTIMUM ENERGY 90 984 2037 78 1074 2095 934 2042 1054 2085 +10 / +5
100 1084 1174 1034 1154
PREMIUM ENERGY 90 984 2037 66 1074 2095 934 2042 1054 2085 +10 / +5
100 1084 1174 1034 1154
  • SS total door leaf width (including rebates)
  • HS total door leaf height (including rebate)
  • DS door leaf thickness
  • S0 width of a wall opening prepared for installation
  • H0 height of a wall opening prepared for installation, measured from fi nished fl oor level
  • OS width in frame clearance
  • OW opening height (measured from fi nished fl oor level)
  • SZ overall frame width
  • HZ overall frame height
  • TS/W acceptable width and height tolerance (wall opening)
