£19.90

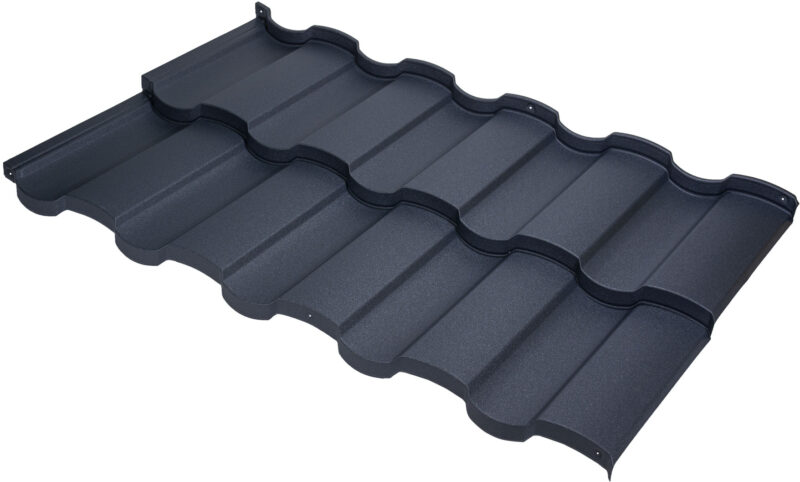

Eternal elegance – We have created a roof that will add class to every building. It is distinguished by 5 lower waves and 5 upper waves. Elegance is Rialto
30 Years Warranty + Guarantee of Colour Repeatability
In stock
| Weight | 3.85 kg |
|---|---|
| Dimensions | 120 × 80 × 2 cm |
| Manufacturer |
Minimal roof slope - 9° (15%)
The total width of the sheet [mm] - 1195
The effective width of the sheet [mm] - 1150
Height of the embossments [mm] - 35
Wave height [mm] - 23
Overall height [mm] - 58
The total length of the sheet [mm] - 735
The effective length of the sheet [mm] - 700
Module length [mm] - 350
Width between wave peaks [mm] - 230
Covering area of the sheet [m²] - 0,805
Weight sheet [kg] - max 3,7
Sheet thickness [mm] - 0,5
