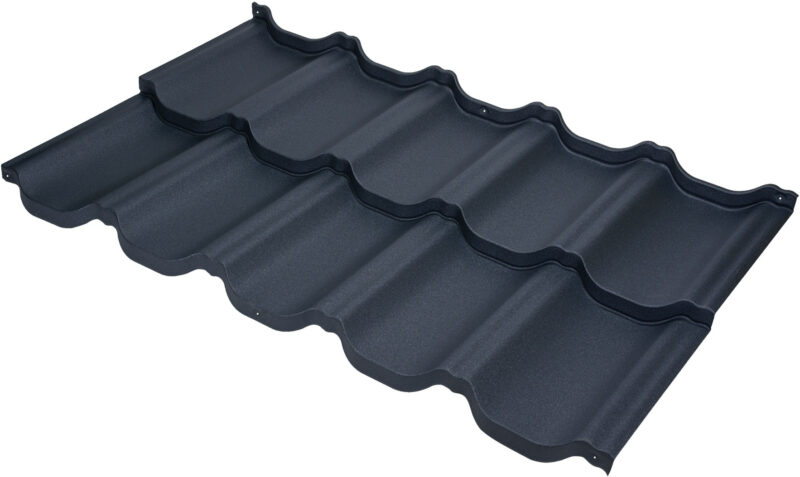

Modular Roof Sheet Venice Anthracite D-MATT RAL 7016 0.81m2

Minimal roof slope - 9° (15%)

The total width of the sheet [mm] - 1190

The effective width of the sheet [mm] - 1150

Height of the embossments [mm] - 35

Wave height [mm] - 26

Overall height [mm] - 61

The total length of the sheet [mm] - 736

The effective length of the sheet [mm] - 700

Module length [mm] - 350

Width between wave peaks [mm] - 230

Covering an area of the sheet [m²] - 0,805

Weight sheet [kg] - max 3,7

Sheet thickness [mm] - 0,5
